Three-Way Valve 1/2" Port

Three-Way Valve 1/2" Port





Product Code: TWV
Qty:

Description

  • 3-way valve operates logically - The handle points to the direction of flow. Center position is off .
  • Handle rotates a full 180.
  • Mount foot included.
  • Full flow.
  • Stainless steel handle and hardware.
  • PTFE seats and seals.
  • TWV-1500 size is ideal for waste systems.
  • UL listed for fuel or water.

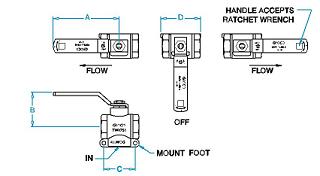

MODEL NPT A B C D WEIGHT
TWV-500 1/2" 4.10" 2.12" 1.90" 2.40" 1.08
TWV-750 3/4" 4.10" 2.20" 1.93" 2.44" 1.24
TWV-1500 1-1/2" 6.00" 3.30" 3.15" 3.95" 5.6
